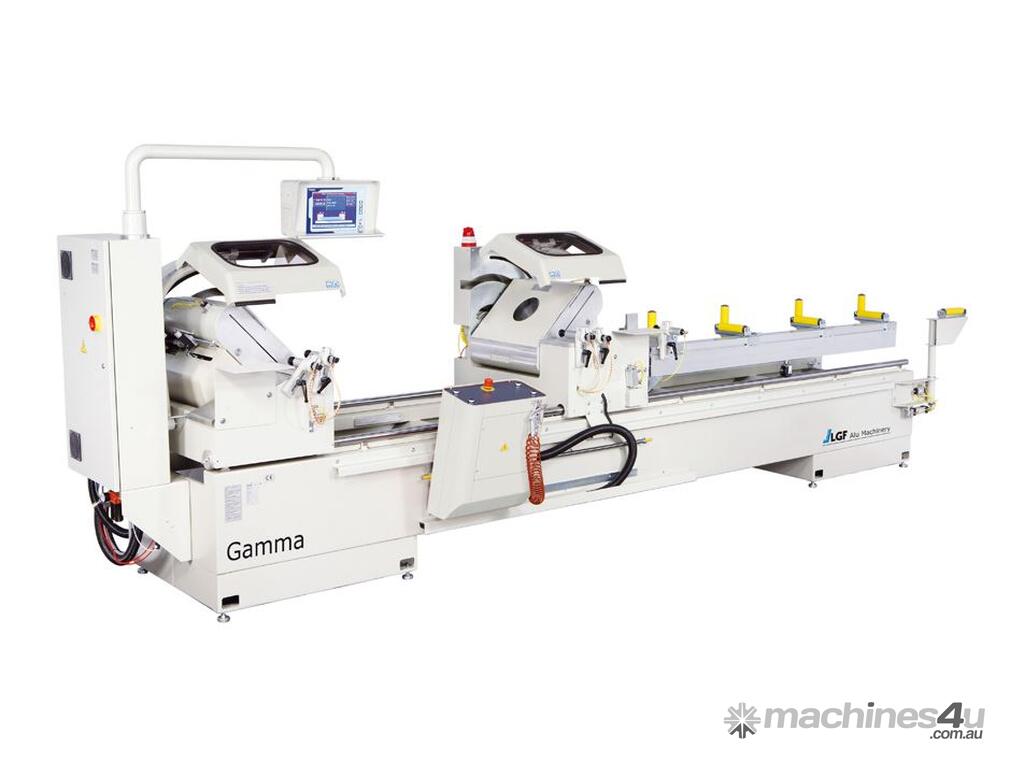

GAMMA SWING DIGIT PLUS

RICHLANDS, QLD - Delivers Nationally

3 AXIS ELECTRONIC DOUBLE MITRE SAW

Technical Data:
Machine equipped with electronic position-er, c/w 10" color screen and touch screen system
USB port to store/upload of cutting list
Full protection of the saw blades by means of safety hoods with automatic closing
Right head displacement by means of electronic position-er
Sliding of the moving head by means of recirculating ball bearings on rectified and tempered guides
Radial sliding of the sawing carriage
Controlled and motorized heads tilting from 22,5° to -45° and any intermdiate degrees
Possibility to mount saw blades Ø 500 - 530 - 550 mm
Saw blade shaft Ø 30 mm
2,2 Kw (3 Hp) 3 phase - 2800 r.p.m.
Cutting lengths 4000/5000/6000 mm
Working pressure 7 bar
Overall dimensions 533-633-733x139x196 cm
Weight 1200 - 1350 - 1500 Kg

Standard Equipment:
Nr 2 TCT sawblades Ø 530 mm
Nr 4 horizontal pneumatic clamps
USB flash drive
Automatic lubrication by means of nebulizer
Air filter
Air gun
Service spanners

Optionals:
Turning vertical clamps kit
Pneumatic central support
Right head infeed roller conveyor
Automatic reduced cut device
Over size cut device
Trim cut device
Vee notch device for PVC profiles
Sequential cut device
Profile hight electronic caliber
Micro-spray nebulizing device
Pneumatic support for long bars
Ethernet connection plug
Bar code lable printer..

Since 1954, Gregory Machinery has been 100% Australian owned and operated. From the company's humble beginnings at the Gregory family home in St Lucia, QLD, to the current showroom warehouse at Richlands, Gregory Machinery's mission is to provide Aussies with the latest industry-leading woodworking machinery. All our products are covered by a 12-month warranty*.

* For conditions and further information please see our website.
