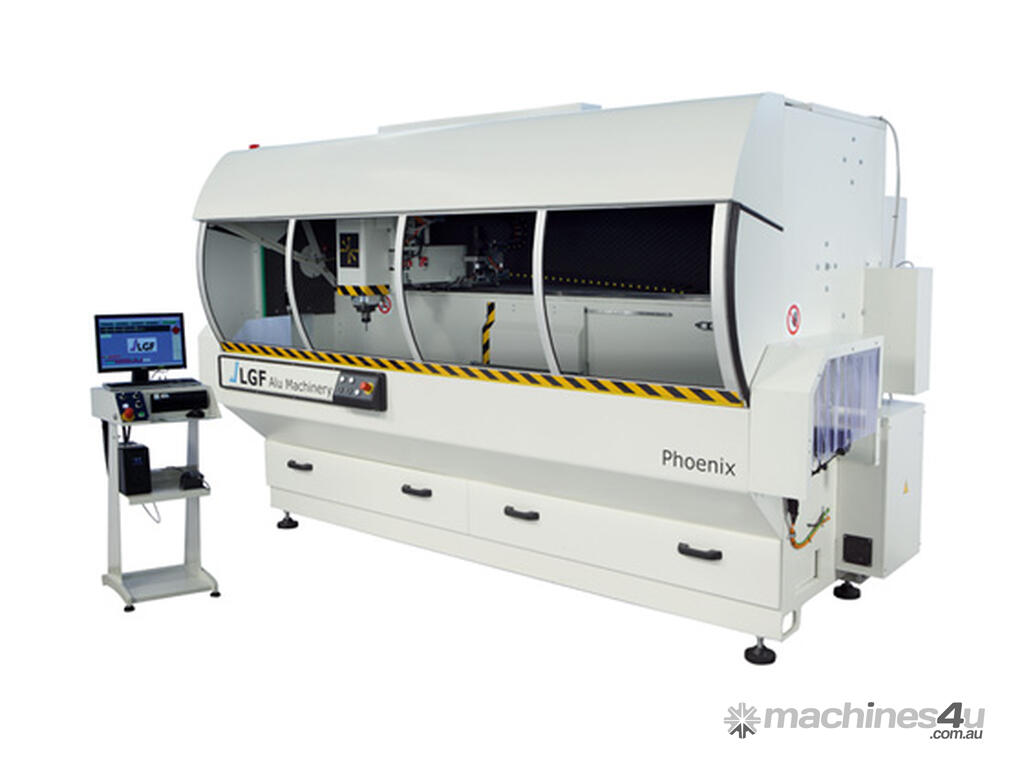

LGF Phoenix CNC Router

RICHLANDS, QLD - Delivers Nationally

CNC MACHINING CENTRE
Technical Data Solid electro-welded steel construction
Axis displacement on linear guides
Rotation of the work bench at 90°, 0°, -90°
Industrial PC control system with LGF dedicated software
Windows Interface
4 controlled axis
4 adjustable clamps with manual traversing
5,5 Kw (7,5 HP) electro-spindle with cone type ISO 30 - 12000 r.p.m.
X axis lenghts 2500/3000/4000 mm
Y axis stroke 400 mm
Z axis stroke 300 mm
Working tollerance : +/- 0,2 mm
X axis travelling speed 60 mt/min.
Y axis travelling speed 20 mt/min.
Z axis travelling speed 20 mt/min.
Automatic tools changer with 7 lodgings
Possibility to work bars longer than the machine
Working pressure 7 bar
Overall dimensions 378/428/633x194x213 cm
Weight 2085/2500/3100 Kg.
Standard Equipment Nr 2 cones type ISO 30
Nr 2 spindle collets Ø 8 mm
Automatic lubrication by means of temporized nebulizer
Air filter
Service spanners
Optionals Control handling of intermediate degrees
Bar code reader
Additional cones type ISO 30
Additional spindle collets
Inverter 18000 r.p.m.
LGF software for PC office
Automatic and controlled displacement of the clamps
Additional manual clamp
Additional automatic clamp
UPS (uniterruptable power supply)
Second end stop on right hand side
Pendulum working cycle
Automatic tools changer with 10 lodgings
Insulating foam..
