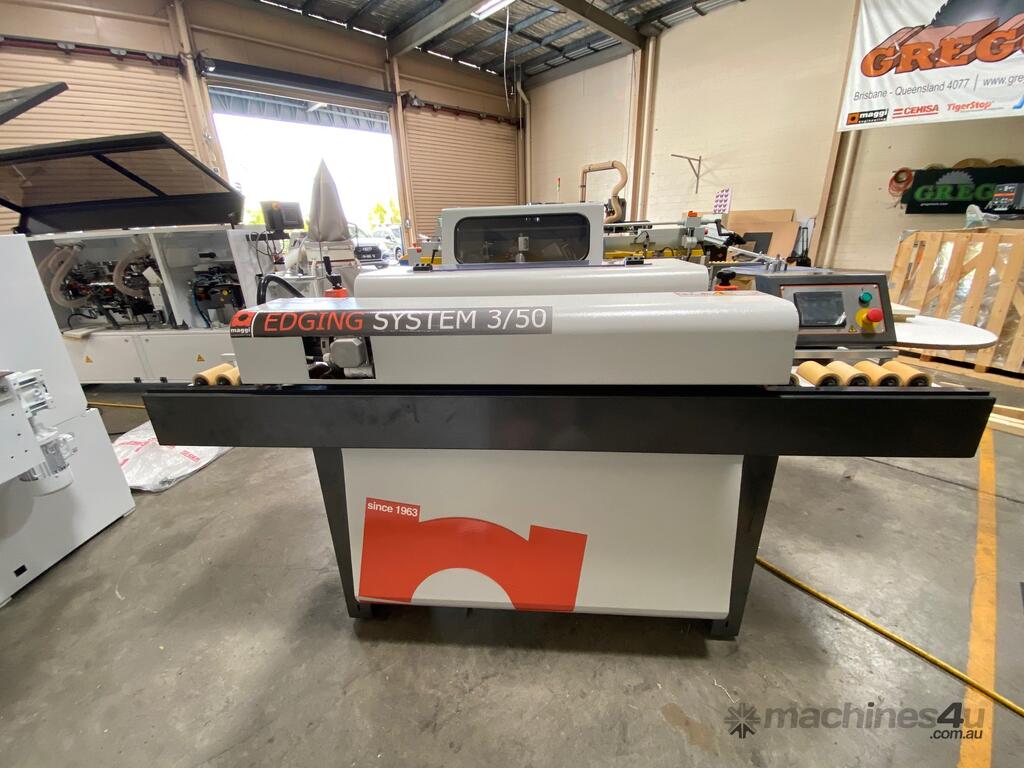

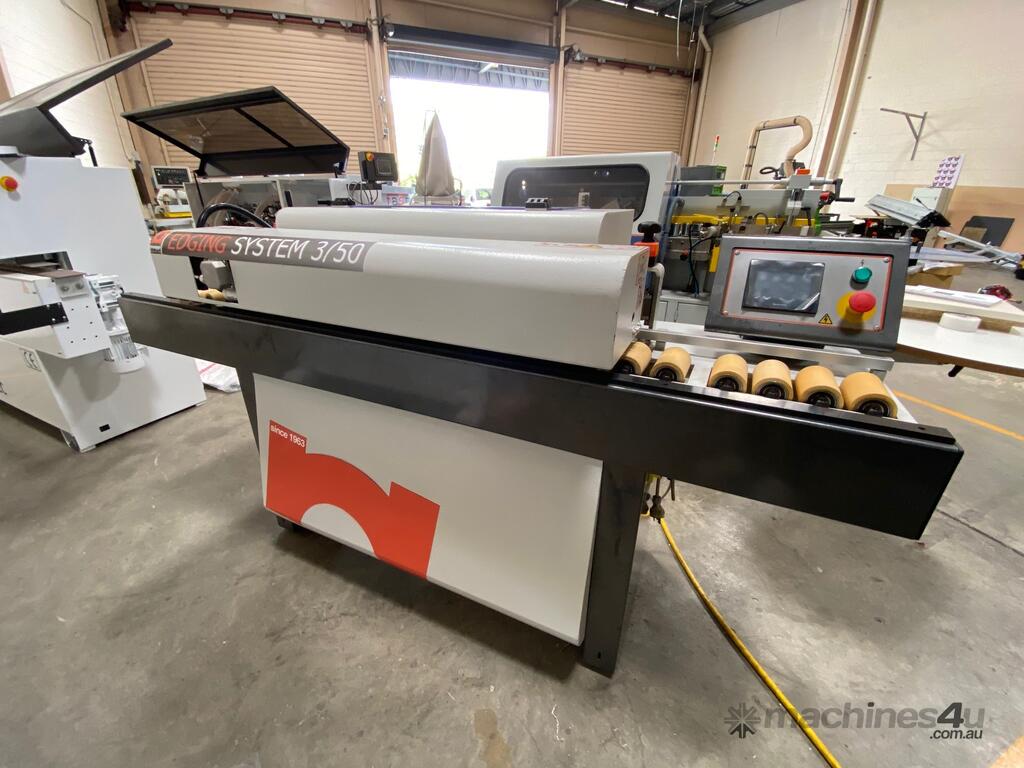

Maggi Edgebander 3/50
RICHLANDS, QLD - Delivers Nationally -
-
-
-
+8
Maggi Edgebander 3/50 : Ask for Price
This Italian manufactured edgebander will help small business / entry level cabinetmakers improve the edging process. This is a display stock item.
FEATURES
* Glue Tank - made of aluminium and characterised by a round shape ensuring the optimum and uniform heating of the glue.

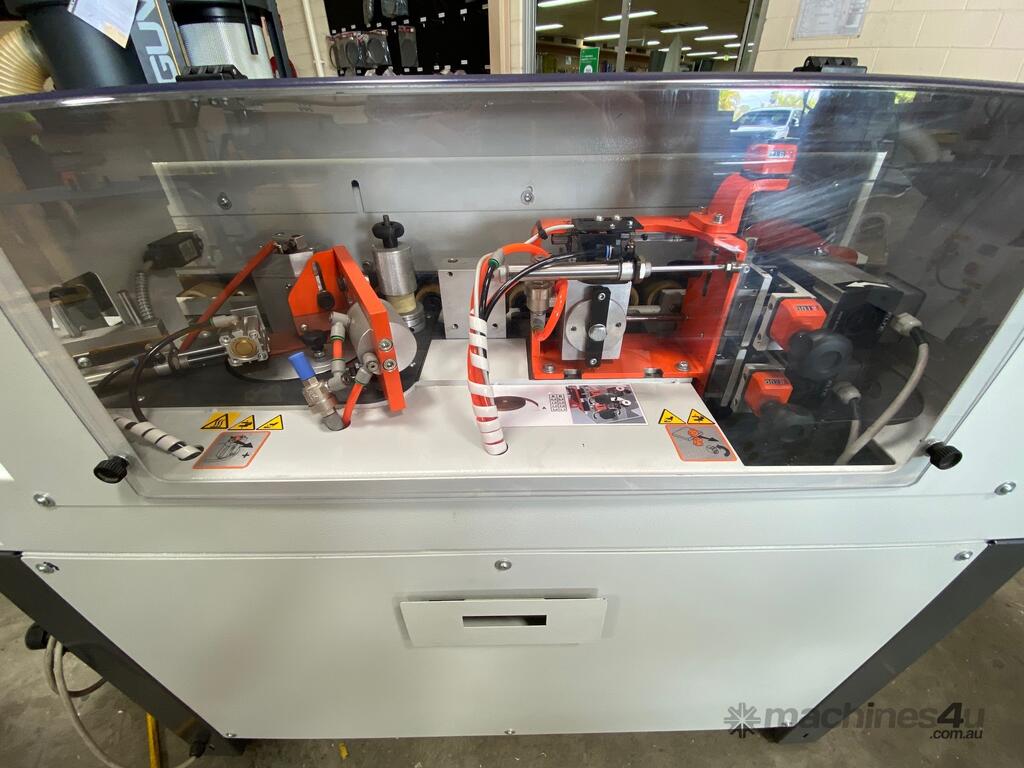

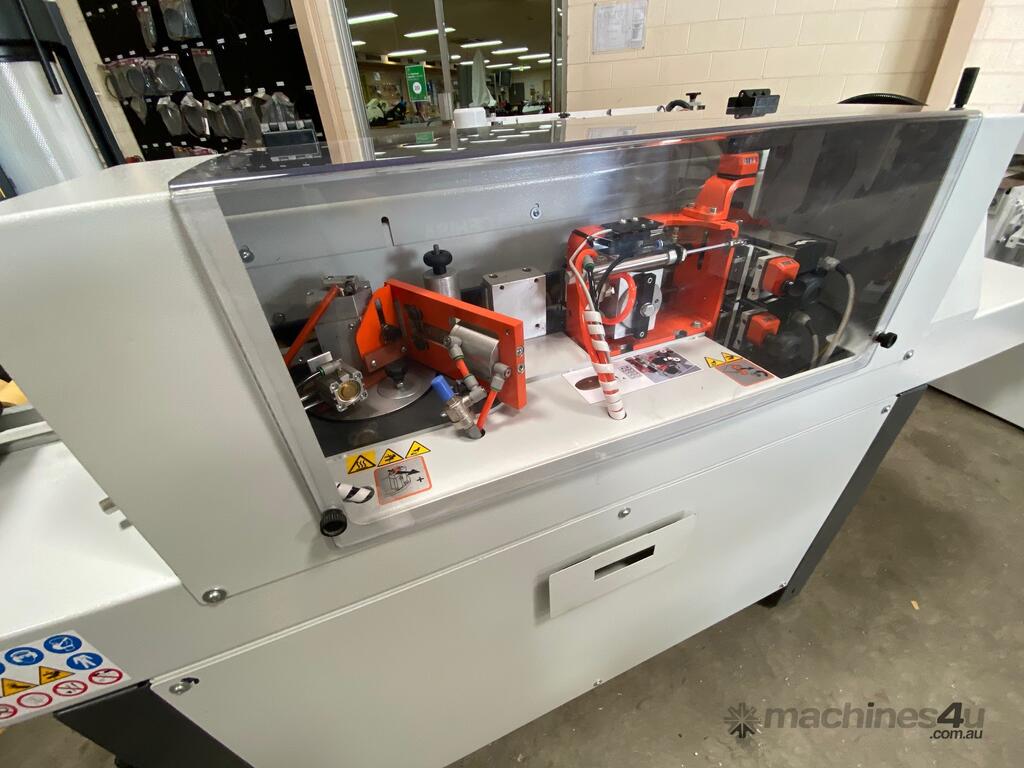

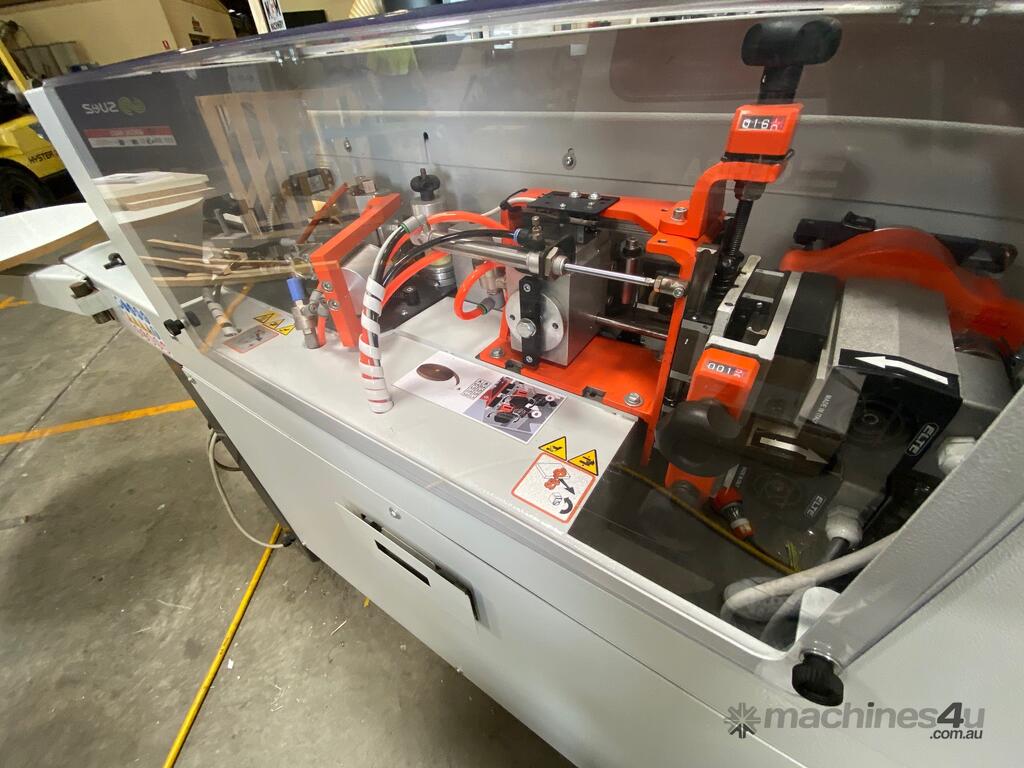

* Trimming unit - N.2 high frequency motors. The vertical movement of the upper motor is independent and on guides and blocks sliding on ball bearings.
* Copiers - hardened steel copiers discs - 90mm assembled on ball bearings.

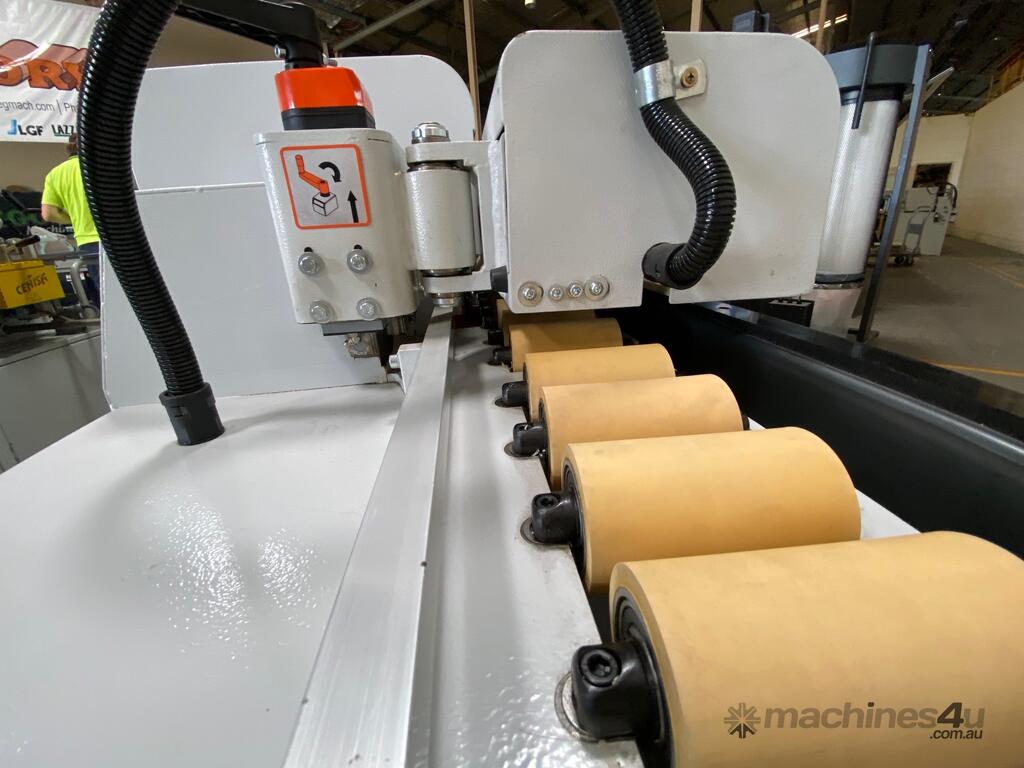

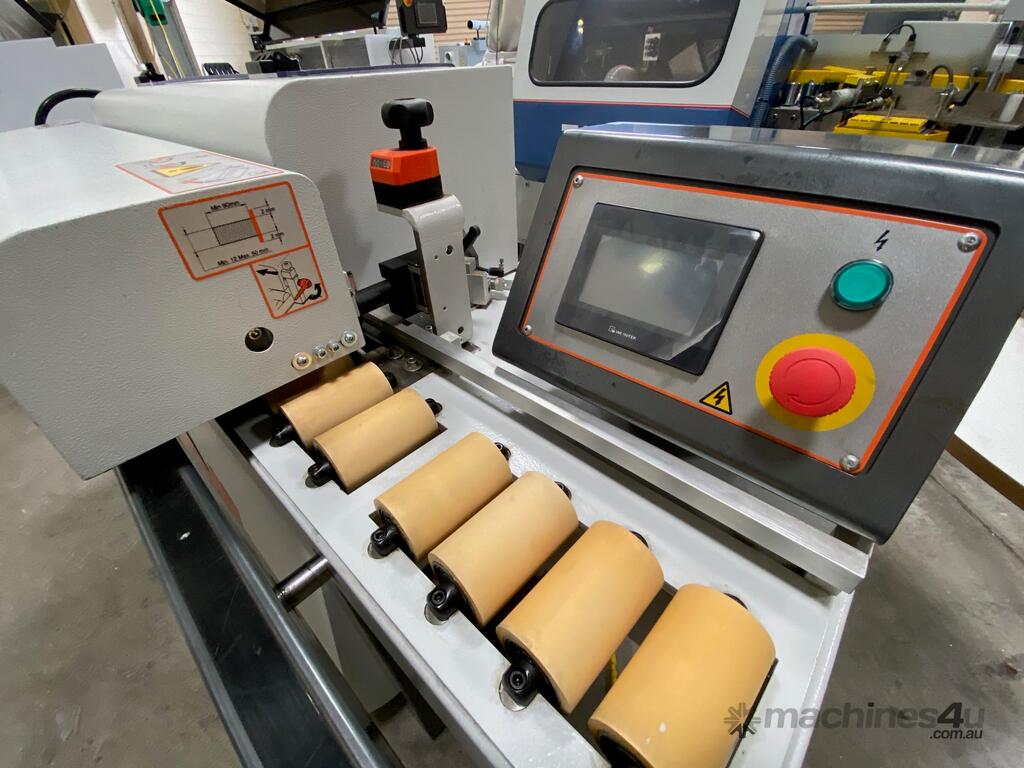

Edge Pressing Rollers - swinging and made of hardened steel assembled on bearings. Equipped with an adjustable guide for edge alignment.
* End cutting unity assembled on linear guides and blocks N.2 tilting guillotine shears HSS, blower to remove edge residues.
*Quick disassembly of the milling unit to easily replace the cutters.
* Reel support - diameter of 615mm which is collapsible to save space when not in use.
TECHNICAL DETAILS
Edge Banding Thickness Min/Max: 0,4 / 3 mm
Wood Strip Thickness Min./Max. 0,4 / 2 mm
Working Panel Thickness Min/Max: 12/50 mm
Minimum Dimensions Of The Working Panel: 90 x 190 mm
Motorized Feeding Belt Speed: 6 M/Min
Glue Working Temperature: Max 210° c
Glue Pot Capacity: 1,2 Kg
Trimming Speed Tours: 10.000 Rpm
Trimmer Diameter: 80 mm
Trimmer Motor Power Puissance: 2 x 0,37 Kw
Suction Hood Diameter: 80 mm

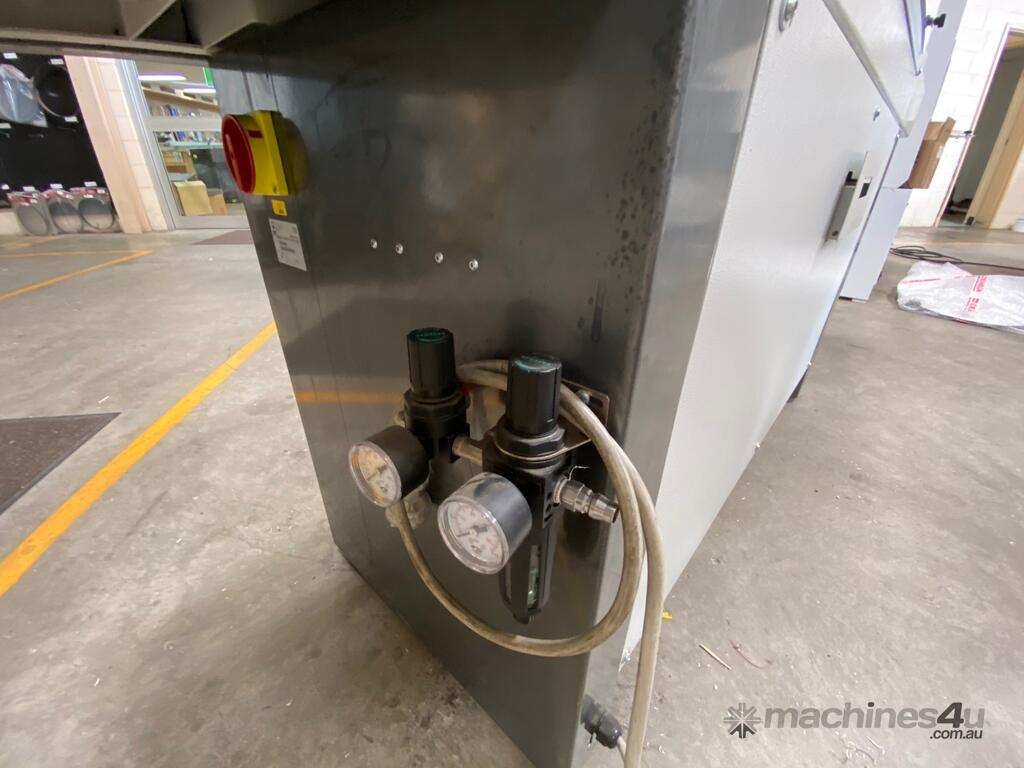

Working Air Pressure: 6-8 Bar
Dimensions of the Working Table: 2000 x 250 (max 635) mm
Height of the Working Table: 870 mm
Overall Dimensions: 2650 x 1500 x 1250 mm
Package Dimensions: 2050 x 760 x 1200 mm
Net/Gross Weight: 280 /330 Kg
